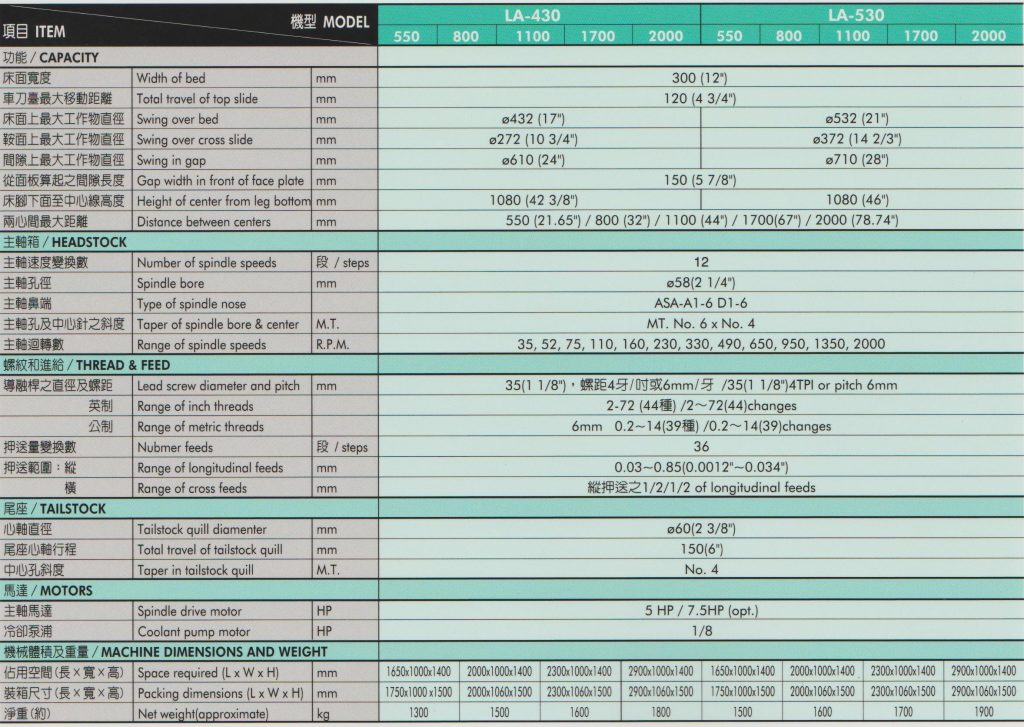

Specs High Speed Precision Lathe

Hubungi Kami: (021) 2215-7063, E-mail : bca@brensoncitraabadi.co.id | Deltamas Boulevard Ruko Palais De Paris Blok I No. 21 Kota Deltamas Cikarang Pusat – Bekasi 17550

SPECIFICATIONS:

  • Bed Width: 12″
  • Total Travel of Top Slide: – 4-3/4″
  • Swing Over Bed: – 17″
  • Swing Over Cross Slide: – 10-3/4″
  • Swing in Gap: – 24″
  • Gap Width in Front of Face Plate: – 5-7/8″
  • Height of Centers from Leg Bottom: – 42-3/8″
  • Distance Between Centers: – 67″
  • Number of Spindle Speeds: – 12
  • Spindle Bore: – 2-1/4″
  • Type of Spindle Nose: – D1-6
  • Taper of Spindle Bore & Center: – MT No. 6 x No. 4
  • Range of Spindle Speeds: – 35-2000 RPM
  • Leadscrew Diameter & Pitch: – 1-1/8″ 4 TPI
  • Range of Inch Threads: – 44 (2-72), 2 PTI:1-36
  • Range of Metric Threads: – 39mm :(0.2 ~ 14)
  • Number of Feeds: – 36
  • Range of Longitudinal Feeds: – 0.035~0.85 (0.0012″~0.034″)
  • Range of Cross Feeds: – ½ ½ of Longitudinal Feeds
  • Tailstock Quill Diameter: – 2-3/8″
  • Total Travel of Tailstock Quill: – 6″
  • Taper in Tailstock Quill: – MT#4
  • Spindle Drive Motor: – 7 ½ HP
  • Coolant Pump: – 1/8 HP
  • Weight: – 3,960 Lbs.
  • Electrics: – 208 Volt, 3 Ph

STANDARD EQUIPMENT:

  • 12”- 4 Jaw Bison Chuck
  • 10”- 3 Jaw Bison Chuck
  • Levelling Screws
  • Service Kit
  • Large Steady Rest
  • Coolant
  • Follow Rest
  • Hand Wheel on Left Side of Carriage
  • CSA Electrics
  • Splash Guard
  • Taper Attachment
  • Multi Fix Tool Post,4 Holders
  • 2-Axis NEWELL DRO
